Lithium-Ion Battery Assembly Inspection Using Short Wave Infrared (SWIR) Imaging Whitepaper

red divider 100

The enhanced contrast and superior FOV of SWIR Vision’s Acuros CQD SWIR cameras provide the necessary alignment accuracy of inter-layer electrodes leading directly to more available energy storage capacity and longer battery lifetimes.

As lithium-ion battery technology plays a central role in the race toward mobile electrification, improved inspection capabilities are needed to help drive down cost, increase energy densities, and improve overall safety and reliability. Short Wave Infrared (SWIR) imaging is enabling new capabilities for lithium-ion battery inspection aimed at addressing these needs. In this application note, we explore how high resolution, wide field-of-view, and extended SWIR cameras have been put to work to overcome important lithium-ion battery inspection challenges to meet increasingly demanding performance and quality specifications.

In this whitepaper

  • Lithium-ion battery inspection is poised to make significant impacts in the push toward mobile electrification.
  • Imaging through the Li:Ion separator with SWIR wavelengths
  • Inspection system configurations
  • Battery inspection applications examples
  • plus more

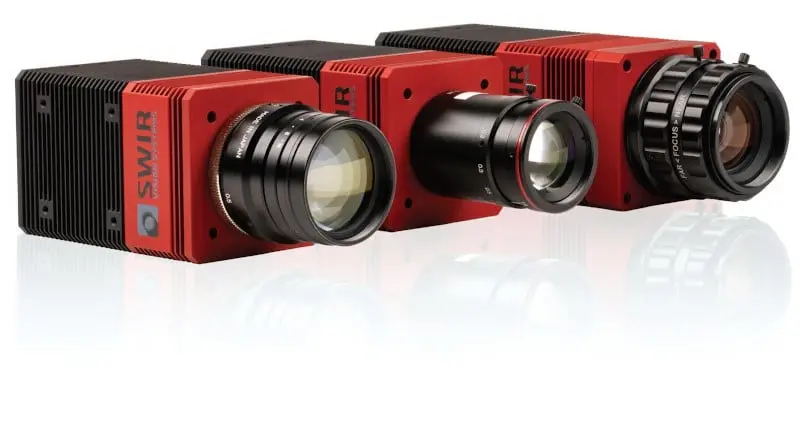

acuros cameras
