Acuros SWIR Cameras

Acuros SWIR Cameras

Acuros® CQD® SWIR cameras provide high-resolution imaging and sensing capabilities across the visible, near-infrared (NIR), and shortwave infrared (SWIR) spectrum. The cameras are built using SWIR Vision System’s CQD photodiode sensors with spectral response from 400 nm to 1700 nm. They feature high frame rates, global shutter operation, and up to 70 dB of dynamic range.

Acuros CQD SWIR cameras are designed to meet the imaging requirements of demanding industrial applications. They provide system integrators, vision solution providers, and end users the flexibility of programmable frame time, exposure time, gain modes, window modes, binning modes, and more. Designed for use in multi-tool imaging systems, they can be operated with an internal clock or can be externally triggered via software or a hardware TTL trigger input.

The family of Acuros cameras is available in a variety of Acuros sensor sizes:
– 6.3 MP, 3064 x 2040 format sensor
– 4.2 MP, 2048 x 2048 format sensor
– 2.1 MP, 1920 x 1080 format sensor
– 1.2 MP, 1280 x 1024 format sensor
– VGA, 640 x 512 format sensor

While InGaAs SWIR cameras, such as the Sony IMX990, are generally constrained to VGA and 1.3 MP sensor formats, our pioneering CQD sensor technology enables 2.1 megapixel, full-HD resolution; the first commercial SWIR product of its kind. Inherently low-cost CQD sensor processing enables lower costs per megapixel than comparable InGaAs SWIR Cameras.

All of the Acuros cameras have an EAR-99 export classification which requires no license for export globally. This makes them the ideal choice for integration in global, multinational supply chains and manufacturing operations.

SWIR Camera Features

  • 640 x 512, 1280 x 1024, 1920 x 1080
  • TEC cooling for low noise
  • Full Visible-to-SWIR bandwidth
  • USB3 Vision, GigE Vision interfaces
  • Compatible with range of SWIR lenses
  • Software GUI for camera control
  • Pixel non-uniformity correction
  • SDK included for user development

SWIR Camera Applications

(Scroll Left-Right to see full table – use scroll bar under table)
Camera Model Image Doc Resolution Megapixel Interface TEC Shutter Max Frame Rate Pixel Pitch (µm) Spectral Response Lens Mounts

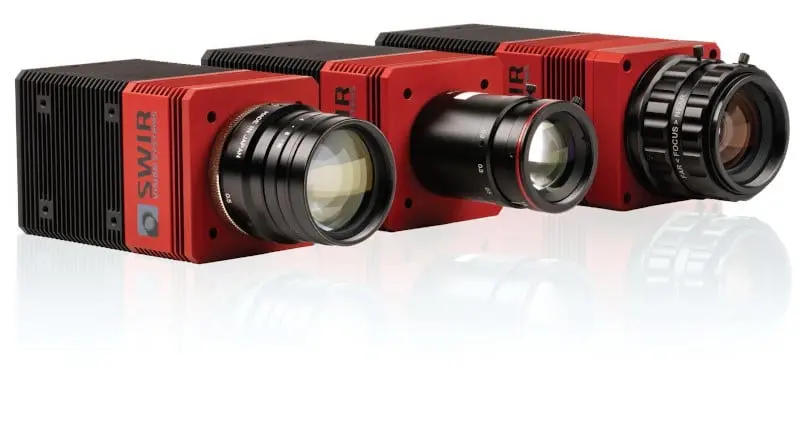

Acuros® 640 GigE 001 SWIR Camera  Acuros® SWIR Cameras
PDF
640 x 512 0.33 GigE TEC Global 270 fps 15 x 15 400-1700nm C,F, M-42 @ C
Acuros® 640 USB 001 SWIR Camera  Acuros® SWIR Cameras
PDF
640 x 512 0.33 USB TEC Global 270 fps 15 x 15 400-1700nm C,F, M-42 @ C
Acuros® 1280 GigE 001 SWIR Camera  Acuros® SWIR Cameras
PDF
1280 x 1024 1.31 GigE TEC Global 88 fps 15 x 15 400-1700nm C,F, M-42 @ C
Acuros® 1280 USB 001 SWIR Camera  Acuros® SWIR Cameras
PDF
1280 x 1024 1.31 USB TEC Global 88 fps 15 x 15 400-1700nm C,F, M-42 @ C
Acuros® 1920 GigE 001 SWIR Camera  Acuros® SWIR Cameras
PDF
1920 x 1080 2.07 GigE TEC Global 58 fps 15 x 15 400-1700nm F, M-42 @ C
Acuros® 1920 USB 001 SWIR Camera  Acuros® SWIR Cameras
PDF
1920 x 1080 2.07 USB TEC Global 58 fps 15 x 15 400-1700nm F, M-42 @ C
Acuros® 4 SWIR Camera
PDF
2040 x 2040 4.2 10GigE & CoaXPress TEC Global 100 fps 7 x 7 400-1700nm C, M-42 @ C
Acuros® 6 SWIR Camera
PDF
3064 x 2040 6.3 10GigE & CoaXPress TEC Global 100 fps 7 x 7 400-1700nm C, M-42 @ C

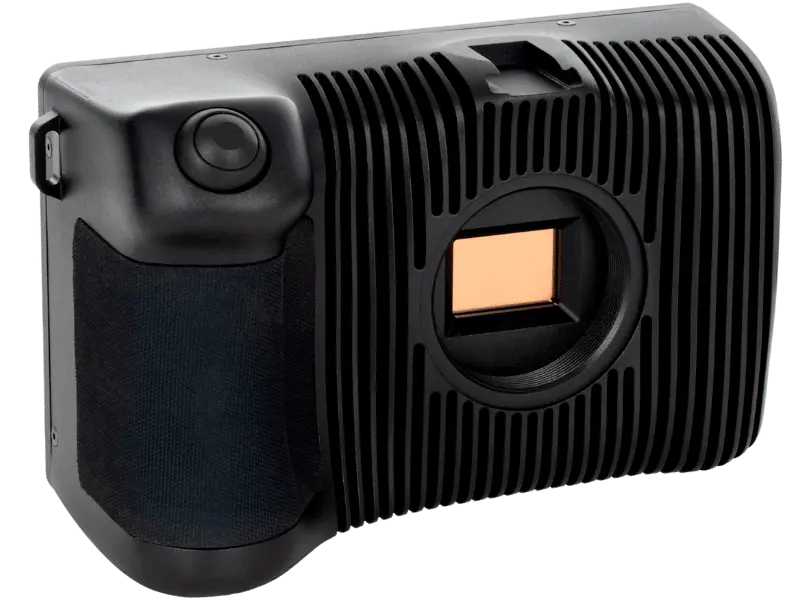

Acuros® GO Handheld Camera Acuros Go - SWIR Camera 3064 x 2040 6.3 USB-C TEC Global 30 fps 7 x 7 400-2000nm C, M-42 @ C
Acuros® eSWIR Cameras  Acuros® SWIR Cameras 1920 x 1080 0.33 to 6.3 USB & GigE TEC Global 58 – 270 fps 15 x 15 400-2000nm C,F, M-42 @ C
Acuros® CQD® L-Series Cameras  Acuros® SWIR Cameras 1920 x 1080 0.33 to 2.07 USB & GigE TEC Global 58 – 270 fps 15 x 15 400-2000nm

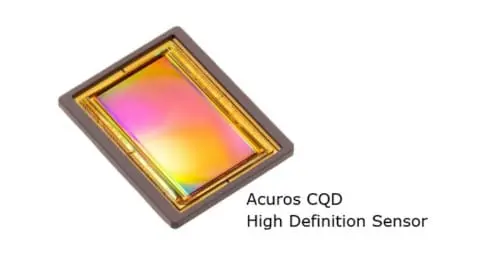

Acuros SWIR CQD Sensors - High Definition Sensor for SWIR Cameras

CQD® SWIR Sensors

Learn more about the power of our broadband and image sensor technology

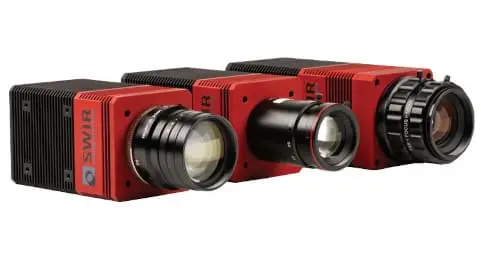

Acuros SWIR cameras - image shows 3 cameras - these have no mirror - SWIR lenses are available for SWIR Cameras

Swir Lenses

Dozens of SWIR lenses that have been designed for use with SWIR cameras are available.
