Acuros CQD High Definition Sensor

SWIR Vision Systems presents breakthrough capability for its quantum dot based short wavelength infrared (SWIR) sensor technology.

SWIR Vision Systems

Announces Capability
for Consumer and
Automotive Sensing Systems

ls project 2 slide 2

Learn More

SwirVisionSystems 18512 web1

We introduce our Acuros CQD SWIR cameras for cooled, high resolution & low noise operation.

High Definition.

Vision.

SWIR

Commercial first….
Acuros 1920 x 1280 SWIR!

cqd 6
ls slider 2 slide 2

Imaging crack and void defects
like never before.

Learn More

alignment mark

Acuros SWIR cameras deliver impactful imaging for high speed semiconductor inspection

Silicon Inspection.

in High Resolution.

SWIR Imaging.

ls project 2 slide 7
SWIR Vision System's Acuros
CQD SWIR cameras are
designated as EAR99 by the
U.S. Department of Commerce

Learn More

acuros cameras slider1

This designation means that the Acuros SWIR cameras can be sold globally for all lawful exports, with no export license required.

SWIR cameras

sold globally

US EAR99

ls slider 2 slide 7

Learn More

eswir vision 1920x1080

Best in class, extended SWIR imaging opens
new applications for users.

More Innovation.

Vision.

cameras

with

eSWIR

We now take 1920 x 1280
imaging to 2000nm!

cqd 6
ls slider 2 slide 8

Learn More

Laser Beam Profiling SWIR Camera resized1

Fast 350nm-2000nm spectral response time for pulsed measurements.

Laser Beam
Inspection

Large Sensor Area
for Testing Flexibility

1 SWIR 2022 Prism Award
2 Acuros CQD
1st-1
2nd mobi4
3rd mobi4

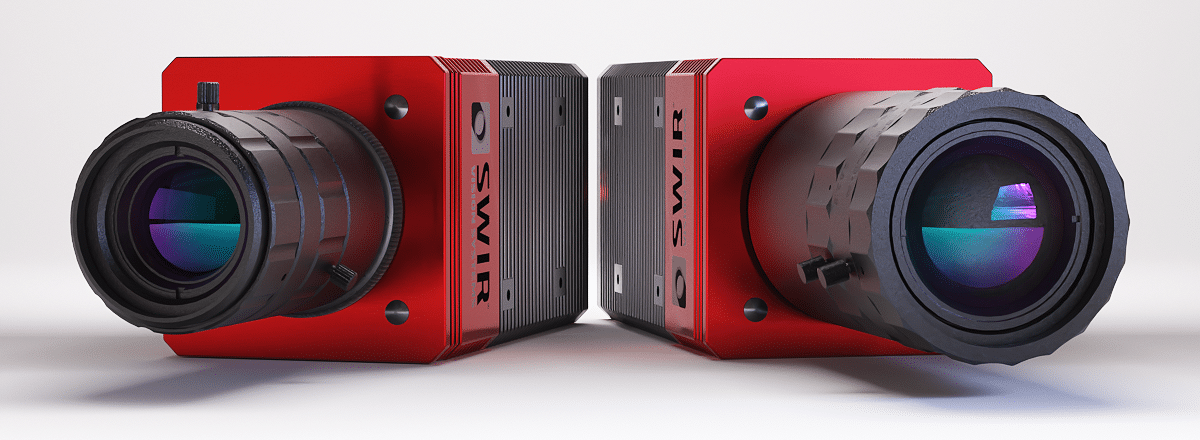

SWIR Vision Systems has pioneered the first-ever, 2.1 megapixel, CQD® SWIR camera. The Acuros CQD® is the highest resolution SWIR camera commercially available.

cameras 7
SWIR Cameras

How It Works

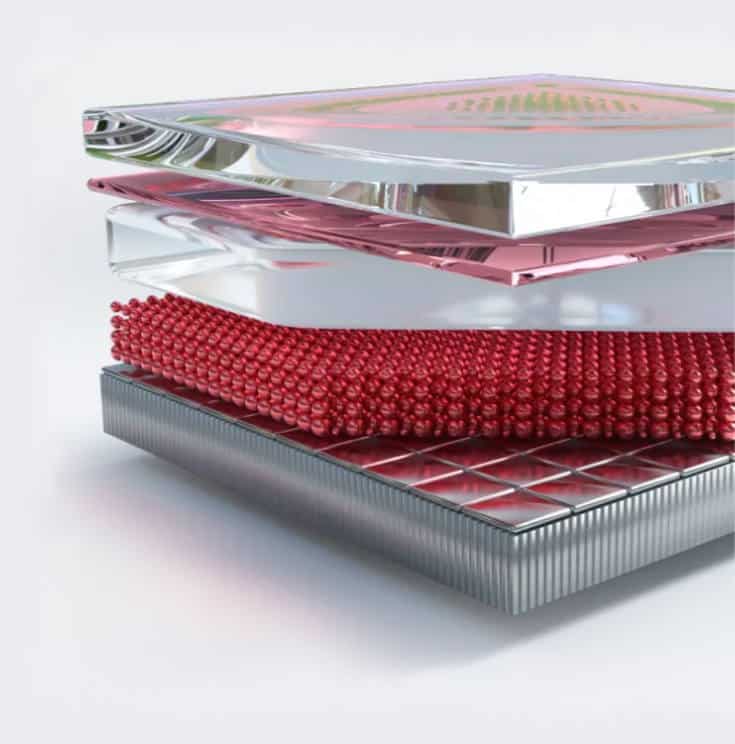

The Acuros® CQD® camera products use our patented CQD sensor technology. CQD sensors are fabricated using low-cost deposition techniques to produce quantum dot photodiodes directly on CMOS readout integrated circuits (ROICs).

sandwich mobile crop
  • Encapsulant
  • Transparent Electrode
  • Other Thin Film
    Layers
  • Quantum Dots
  • Metal Pixel Electrode
  • CMOS-based read-out
    integrated circuit
    (ROIC)

The CQD® Process:

The process requires no hybridization, no epitaxial growth or exotic substrate materials, scaling easily to high volume production. The approach employs low-cost, solution-processed, colloidal quantum dots to form small pitch p-n photodiode arrays sensitive in both the SWIR and visible spectral bands.

Learn More

How it Stacks up

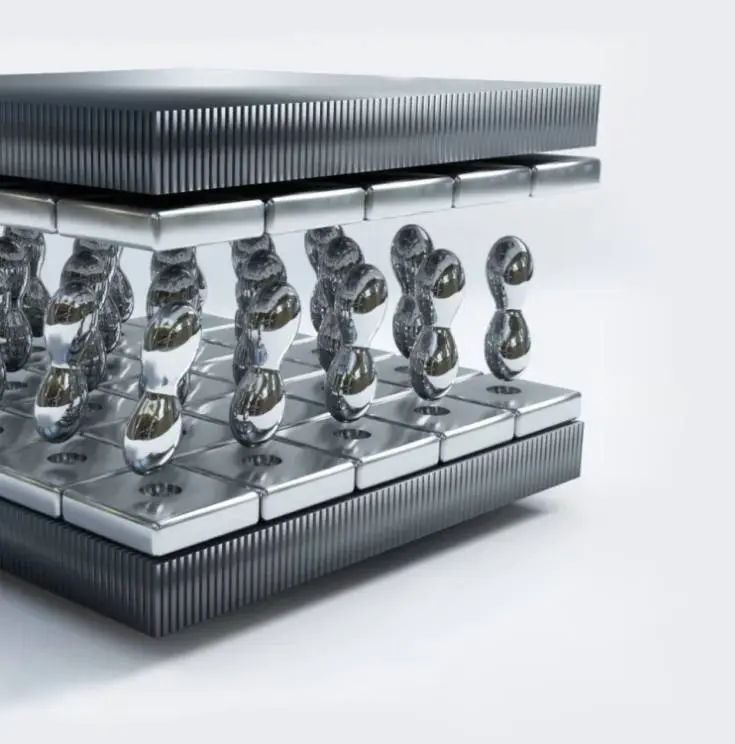

Today the SWIR imaging market is dominated by InGaAS sensors whose fabrication method imposes limitations on pixel size, pixel spacing and sensor resolution. With the introduction of SWIR’s Acuros CQD Sensor, production is more affordable and easier to scale, without sacrificing performance.

stacks up2

InGaAs SWIR

  • Lower resolution
  • Not volume scalable
  • Not cost scalable
  • Difficult to export
stacks up1

Acuros CQD SWIR

  • Higher resolution
  • Scalable to high volume
  • Scalable to very low cost
  • EAR99 for global export

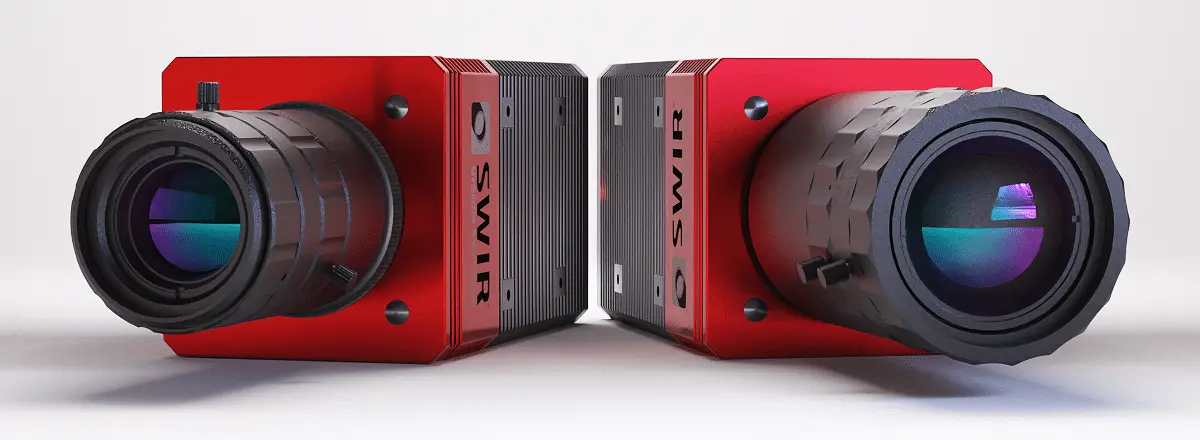

ACUROS PRODUCTS

Acuros CDQ SWIR cameras deliver brilliant, high resolution images with high frame rates, high dynamic range and a broad range of exposure times.

  • 3 resolutions: 640 x 512, 1280 x 1040,  1920 x 1080
  • USB3 Vision or GigE Vision interfaces
  • C-, F-, M-42 Mount interfaces
  • Compatibility with a range of SWIR lenses
  • ITAR-Free, EAR-99 designation for ease of export
  • Software GUI for camera control
  • Pixel Non-uniformity correction
  • SDK included for user development
standard swir

ACUROS CQD Standard SWIR Cameras

The Acuros standard SWIR cameras are the highest resolution SWIR cameras sold globally allowing users to see the finest details in the widest fields.

eSwirVisionSystems

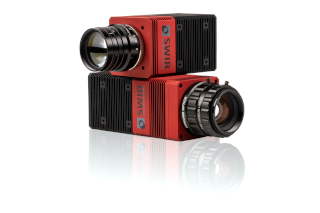

ACUROS CQD eSWIR Cameras

These Extended SWIR cameras offer very wide band responsivity from 400 nm to 2000 nm, expanding the possibilities of imaging applications.

Laser imaging camera swir visioning 2

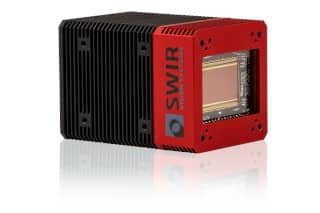

ACUROS CQD Laser Imaging Cameras

Designed for laser beam profiling, these cameras host a large sensor area, low angular sensitivity, and short standoff distances.

swir thumbnail
Acuros Product Details

Download the product data sheet now.

A
SWIR Vision Systems – Transforming Infrared Imaging
Move slider to reveal SWIR technology
comparison 1b
comparison 1a
Food Sorting
bottle after 500
bottle before 500
Imaging through Plastics
comparison 3b
comparison 3a
Maritime Imaging
backside illuminated 5 ms int time - red halogen tom wafer
Silicon visible
Silicon Inspection
